Stack 52mm Auxiliary Gauges:
Replacement Sensors & Harnesses



A new level of accuracy and reliability. Simple 3-wire installation. Specially designed for vehicles with no or low powered electrical systems. The ultimate tuning aid! Total control and driver awareness of critical engine functions.



Replacement Sensors

Part No. Description: Suitable for:
Images where available
Replacement Sensors for ST35XX Pro-Control Gauges

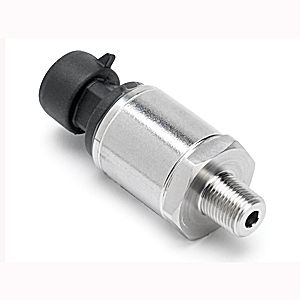

ST262246 Pressure Sensor 7 Bar / 100 PSI ST3501, ST3502, ST3505, ST3506

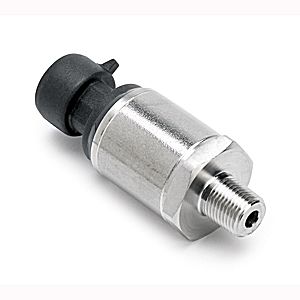

ST262245 Pressure Sensor 1 Bar / 15 PSI ST3503, ST3504

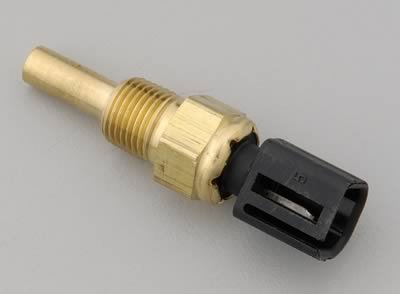

ST262252 Temperature Sensor 150°C / 300°F ST3507, ST3508, ST3509, ST3510

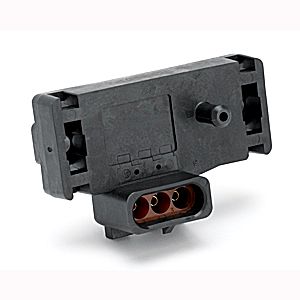

ST262249 Boost Pressure Sensor 2 Bar / 30 PSI ST3511, ST3512



Replacement Sensor for ST340X Wide-band Lambda Gauges

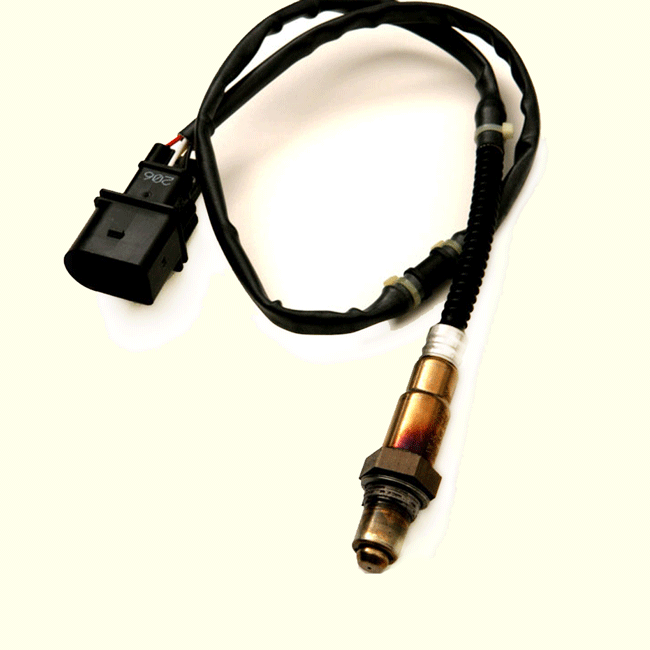

ST262243 Wide-band Lambda O2 Sensor ST3401, ST3402



Replacement Sensors for ST33xx Professional Stepper Motor Gauges
ST262246 Pressure Sensor 7 Bar / 100 PSI ST3301, ST3302, ST3305, ST3306, ST3351, ST3352, ST3355, ST3356, ST3371, ST3372, ST3375
ST262245 Pressure Sensor 1 Bar / 15 PSI ST3303, ST3304, ST3353
ST262252 Temperature Sensor 150°C / 300°F ST3307, ST3308, ST3309, ST3310, ST3357, ST3359, ST3377, ST3379
ST262249 Boost Pressure Sensor 2 Bar / 30 PSI ST3311, ST3312, ST3361, ST3381



Replacement Sensor for ST32xx Electric Gauges

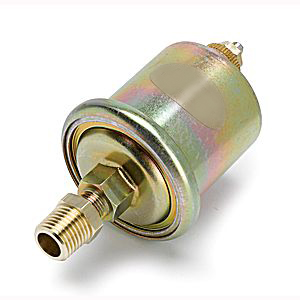

ST262242 Pressure Sensor 7 Bar / 100 PSI ST3201, ST3202, ST3251, ST3252, ST3271

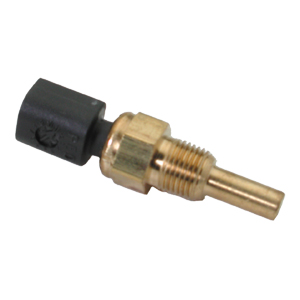

ST262258 Temperature Sensor 150°C / 300°F ST3207, ST3208, ST3209, ST3210, ST3257, ST3259, ST3277, ST3279

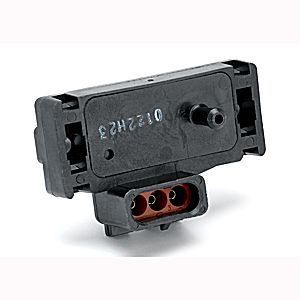

ST262299 Boost Pressure Sensor 2.5 Bar / 35 PSI ST3211, ST3212, ST3261, ST3281






MC Click to return to top of page



Replacement Harnesses

Part No. Description: Suitable for:
Images where available

Replacement Wiring Harnesses for ST35XX Pro-Control Gauges

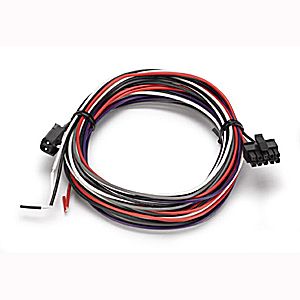

ST265294 Wiring Harness for Pressure Gauges (not inc Boost) ST3501, ST3502, ST3503, ST3504, ST3505, ST3506
ST265295 Wiring Harness for Temperature Gauges (not inc EGT) ST3507, ST3508, ST3509, ST3510
ST265296 Wiring Harness for Boost Pressure Gauges ST3511, ST3512
ST265299 Wiring Harness for EGT Gauges ST3513, ST3514
ST265297 Wiring Harness for  Fuel Level Gauge ST3515
ST265298 Wiring Harness for Voltmeter Gauge ST3516



Replacement Wiring Harness for ST340X Wide-band Lambda Gauges
ST265232 Wiring Harness for Wide-band Lambda ST3401, ST3402



Replacement Wiring Harnesses for ST33xx Professional Stepper Motor Gauges

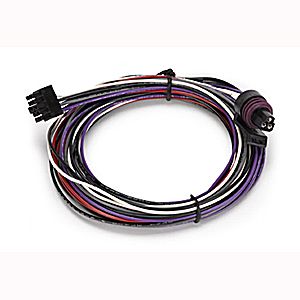

ST265227 Wiring Harness for Pressure Gauges (Not inc Boost) ST3301, ST3302, ST3303, ST3304, ST3305, ST3306, ST3351, ST3352, ST3353, ST3355, ST3356, ST3371, ST3372, ST3375
ST265226 Wiring Harness for Temperature Gauges
(not inc EGT)
ST3307, ST3308, ST3309, ST3310, ST3357, ST3359, ST3377, ST3379

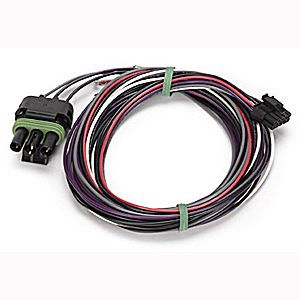

ST265229 Wiring Harness for Boost Pressure Gauges ST3311, ST3312, ST3361, ST3381

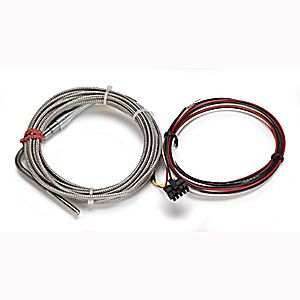

ST265251 Wiring Harness for EGT Gauges ST3313, ST3314, ST3363, ST3383
ST265233 Wiring Harness for  Fuel Level Gauge ST3315, ST3365, ST3385
ST265234 Wiring Harness for Voltmeter Gauge ST3316, ST3366, ST3386
TBA Wiring Harness for Analog Clock ST3317, ST3367, ST3387






MC Click to return to top of page

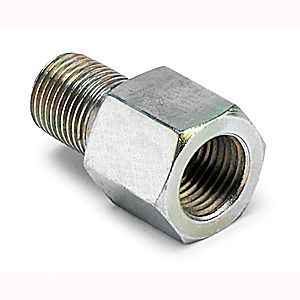

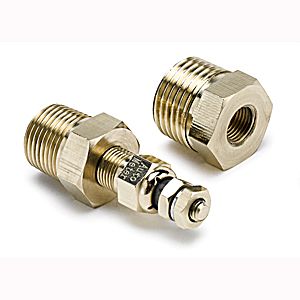

Thread Adaptors
Images where available

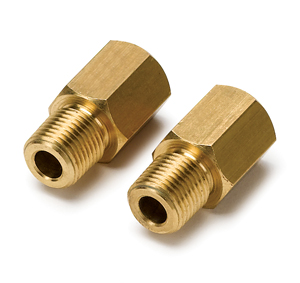

ST154003 1/8NPTF to M10 adapter
ST154006 1/8NPTF to 1/8BSPT adapter
ST154012 M6x1 to M10x1 adapter
ST154013 M6x1 to 1/8NPTF adapter
ST154015 1/8BSP to M10x1 adapter

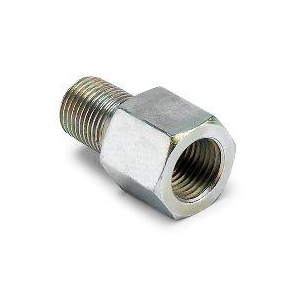

ST154016 1/8BSP to 1/8NPTF adapter






MC Click to return to top of page

Other accessories:

ST269114 LED Lighting Dimmer
60(W)x30(H)x20(d)mm
This compact, separate module is designed to allow for isolated dimming for all Stack 52mm auxiliary gauges.

Click Here for more on Stack Gauge Mounts.
